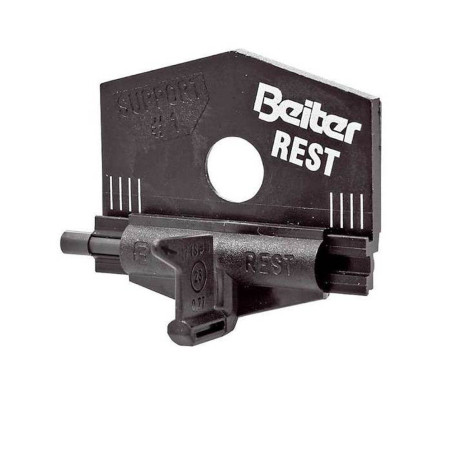

Beiter recurve adhesive arrow rest: for precise adjustments
The Beiter Arrow Rest can be adjusted horizontally and vertically without the need of fastening screws. It has a high precision due to the tolerance-free and backlash-free adjustment.The launcher can be adjusted to 2 different angles – 30° or 35° – by changing two small blocks. The angles can therefore be adjusted precisely. It is equipped with bulging guide plates that allow the rigidity of the launcher to be modified and prevent any oscillation after firing. The spacer made of a special plastic allows better fixing of the screw. A counter screw with an elastomer pad prevents any marks on the bow riser. There are different sizes and thicknesses of launchers to adapt to the different diameters and weights of the arrows. It is ideal for use on a Hoyt Carbon Matrix bow or similar.
Characteristics of the Beiter recurve adhesive arrow rest
- The design allows easy switching between different diameter handles.
- left-handed or right-handed.
- Scale for repeatable positioning of the support arm
- RE1612065 – Arrows up to 7 – 2mm diameter
- RE1832077 – Arrow of 7 diameter-2mm and more
- Ideal for use with the Berger Button Beiter
- In carbon or Alu
